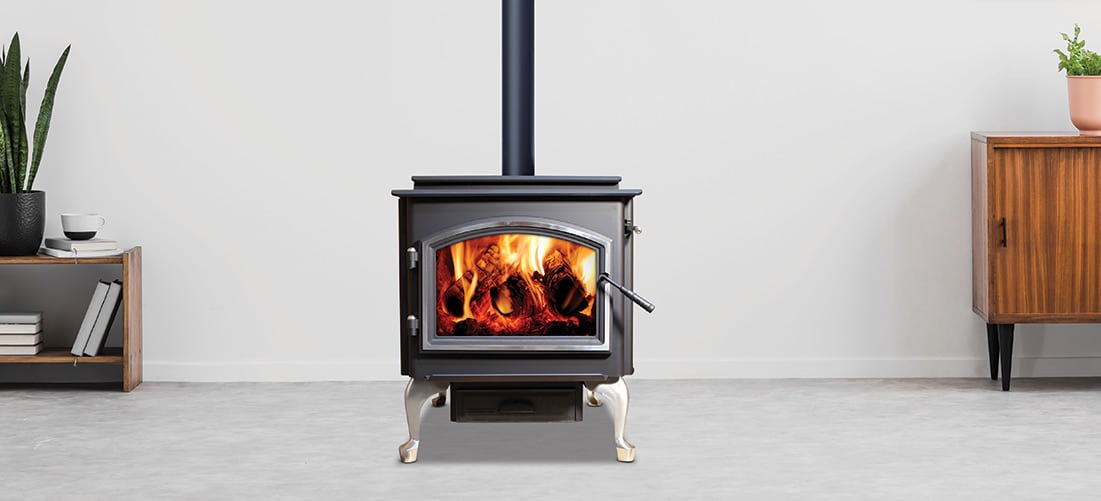

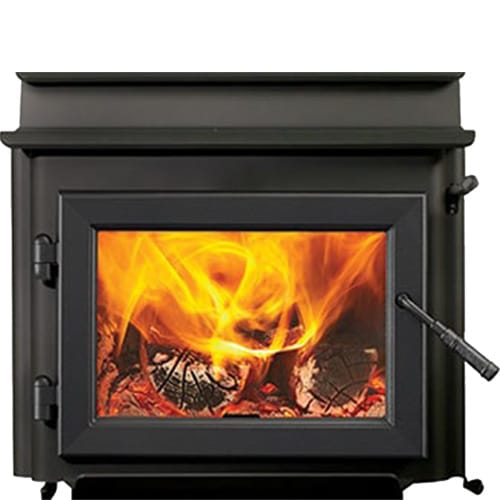

5700 Step Top

The largest freestanding wood stove in the range, the 5700 Step Top delivers high efficiency and low emissions PLUS a maximum burn time of 19 hours. The durable steel construction, ash removal system and patented four-point combustion technology ensures that the 5700 Step Top will deliver exceptional heat output for years and years.

Standard Features

  • Long burn time of up to 21 hours
  • Heating capacity of up to 37sq
  • Average efficiency of 65%
  • Low particulate emissions of 1.5gms/kg
  • Heavy-duty steel construction
  • Ash recovery system with ash pan
  • Convection heat shields
  • Automatic Combustion Control (ACC) technology
  • Four-Point Burn System

Options

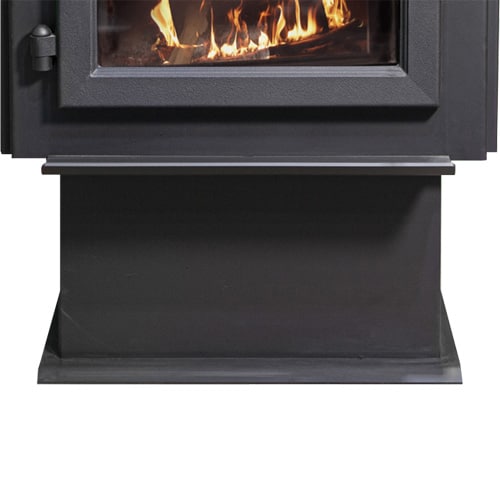

  • Pedestal base

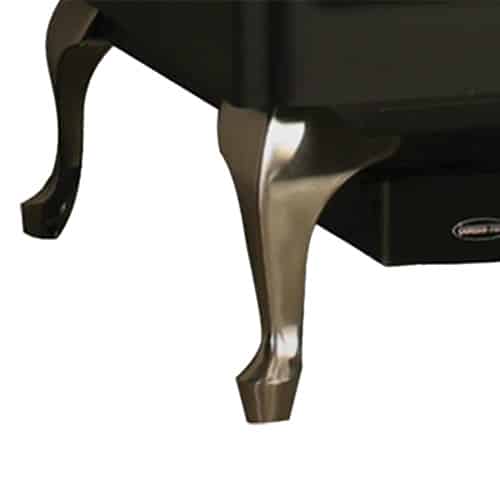

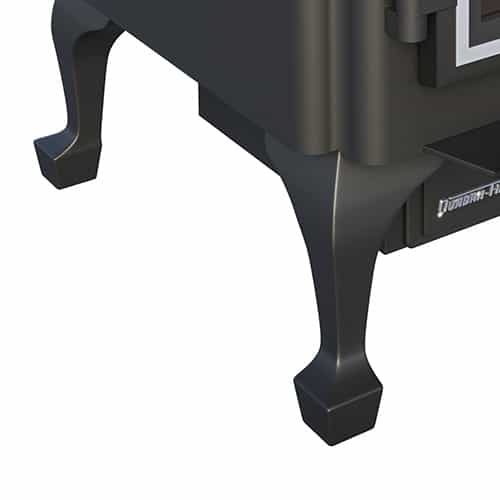

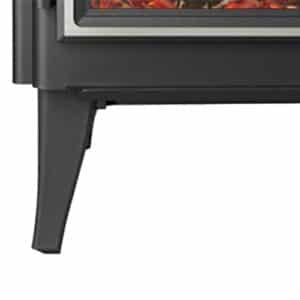

  • Queen Anne legs in classic black or satin nickel

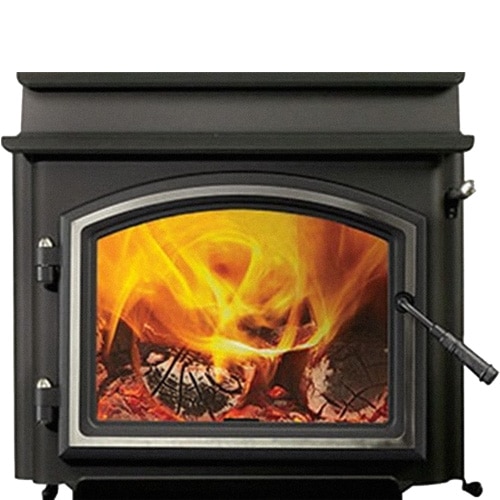

  • Satin nickel upgrade kit available (spring handle and hinge pins)
  • 160 CFM variable speed and temperature convection blower
  • Outside air kit

The Quadra-Fire 5700 Step Top is available from distributors in Victoria, Tasmania, New South Wales, South Australia, Queensland and Western Australia.
View All Distributors.

If you are unable to view PDF documents, please download Adobe’s free PDF Reader.

More Info

5700 Step Top
Width662mm
Height861mm
Depth699mm
Weight220kgs
Max burn time14-19hrs
Heating CapacityUp to 37sq
Clearances – Straight back against wall
Back wall to fire150mm
Side wall to fire300mm
Clearances – Corner Installation
Wall to fire100mm

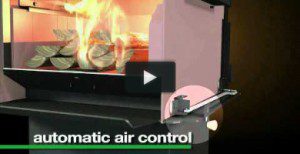

Automatic Air Control

Quadra-Fire Automatic Combustion Control (ACC) Technology

Secondary Burning Zone

Quadra-Fire® Four-Point Burn System
